Evolving tactics call for evolving optics. In 2014, a plethora of advanced optics – ranging from thermal cameras to laser-based holographic weapon sights – have hit the market. And better optics don’t necessarily mean increased prices, like the Nightforce 4-14 x 56 SHV Riflescope with an MSRP south of $1,000. The best shooters in the world require the best equipment. The gallery above brings you the top optics from manufacturers like EOTech, Redfield and Di Optical. Continue reading to see our list of world-class, cost-effective optics for 2014.

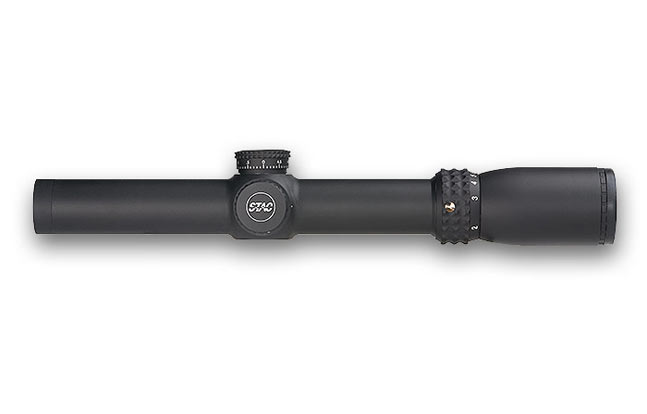

Sightron S-TAC Series S-TAC 1-7×24 IRMH: Sightron Riflescopes introduces its new S-TAC series of tactical riflescopes for 2014. The S-TAC improves upon the SIII series with knurled magnification rings, the use of rheostat, and aspherical glass for better image quality. The North Carolina-based optics company says its 1x magnification has a tolerance of 1.02-.970 for a true 1x optic demanded by competitive shooters and tactical users. S-TAC uses MRAD adjustments in .1 MRAD increments. MSRP: $1104.98.

• Item Number: 26000
• Sku Number: 793139-260000
• Model Name: S-TAC1-7X24IRMH
• Magnification: 1-7x
• Object Diameter (mm): 24
• Fov (ft@100 Yds.): 91.5-13.0
• Eye Relief (in.): 3.9-4.8
• Reticle Type: Mil-Hash IR
• Click Value (@100 Yds.): .1 MRAD
• Minutes Per Revolution: 5 MRAD
• W/E Travel (@100 Yds.): 29 MILS
• Knob Style: Tactical (Resettable)
• Parallax: Fixed at 100yds
• Finish: Matte Black
• Fully Multi Coated: Yes (Zact-7 TM 7-Layer)
• Weight (oz.): 20.1
• Length (in.): 13.0
• Tube Diameter: 30mm
• Sunshade Included: No
• Lens Cover Included: Yes

For more information, visit www.sightron.com

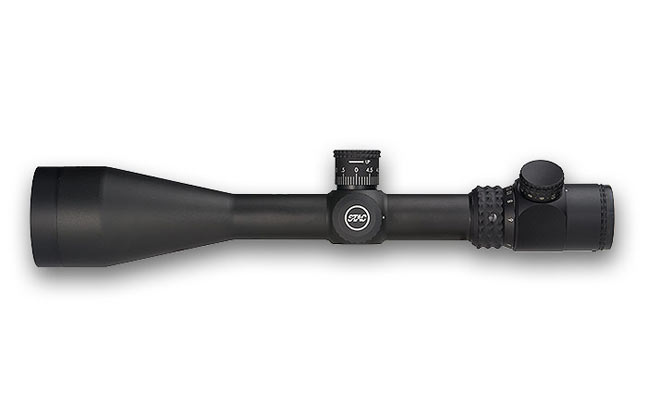

Sightron S-TAC Series S-TAC 2.5-17×56 IRMH: Sightron Riflescopes introduces its new S-TAC series of tactical riflescopes for 2014. The S-TAC improves upon the SIII series with knurled magnification rings, the use of rheostat, and aspherical glass for better image quality. The North Carolina-based optics company uses Exposed Large Tactical Style Turrets that are offered in 0.1 MRAD adjustments, and a Torx 20 set screw positioned on top of the turret demanded by competitive shooters and tactical users. MSRP: $1195.98.

• Item Number: 26006
• Sku Number: 793139-260062
• Model Name: S-TAC2.5-17.5X56IRMH
• Magnification: 2.5-17.5X
• Object Diameter (mm): 56
• Fov (ft@100 Yds.): 41.9-6.1
• Eye Relief (in.): 3.5-3.7
• Reticle Type: Mil-Hash IR
• Click Value (@100 Yds.): .1 MRAD
• Minutes Per Revolution: 5 MRAD
• W/E Travel (@100 Yds.): 11.6/23.2 MILS
• Knob Style: Tactical (Resettable)
• Parallax: Side Focus
• : 10yds to Infinity
• Finish: Matte Black
• Fully Multi Coated: Yes (Zact-7 TM 7-Layer)
• Weight (oz.): 30.6
• Length (in.): 14.5
• Tube Diameter: 30 mm
• Sunshade Included: No
• Lens Cover Included: Yes

For more information, visit www.sightron.com



Trijicon VCOG 1-6x24mm Riflescope: Trijicon, a company well-known in the military and law enforcement realm, added another riflescope with the addition of the VCOG (Variable Combat Optical Gunsight) 1-6×24 mm riflescope. The optic, designed from the beginning for real-world operations, is waterproof to 66 feet and will come with seven different reticle choices, in the first focal plane, which enables the ballistic reticle to be used at any magnification. The VCOG’s reticle is illuminated in red and runs off of everyday AA sized batteries. MSRP: $2,270.00.

• Magnification: 1-6x
• Objective lens: 24mm
• Focal Plane: First
• Eye Relief: 4 in. Constant (101.6mm)
• Exit Pupil: 0.41-0.15 in. (10.4-3.8mm)
• Field of View (Degrees): 18.0-3.0
• Field of View: 95-15.9 ft.@100 yes (31.7-5.3m@100m)
• Adjustment Range: Elevation 90 MOA total travel (35 MOA per revolution), Windage 90 MOA total Travel (35 MOA per revolution)
• Dimensions (LxWxH): 10.05 x 2.51 x 2.73 in. (255 x 64 x 69mm)
• Weight: 23.2 oz. (w/o mount or battery) (657.7g)
• Illumination Source: LED Powered by a Single Lithium or Alkaline AA Battery
• Battery Life: 700 Hours continuous use at brightness setting 4 of 6 (lithium battery)
• Brightness Settings: 6

For more information, visit www.trijicon.com

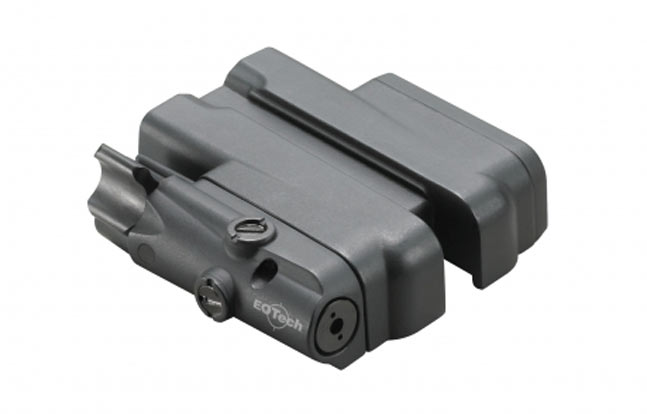

EOTech LBC: Think lasers make your commercial optics better? EOTech agrees and the Michigan-based optics company has added a Laser Battery Cap (LBC) accessory, which can be added to their 512/552 Holographic Weapon Sight. Installed, the LBC emits a low power red visible laser, which is useful across a variety of tactical and home defense scenarios. The battery packs run off of buy-anywhere lithium AA batteries and are waterproof in up to ten feet of water for one hour. MSRP: $285.00.

• Visible Aiming Laser:
• Output Power: 5mW
• Wavelength: 635nm (Nominal)
• Class IIIR

• IR Aiming Laser:
• Output Power: 0.7mW
• Wavelength: 900nm (Nominal)
• Class I
• Operating Temperature:-40 to +140 F

For more information, visit www.eotech-inc.com



EOTech 512/552 LBC2: EOTech improves their LBC platform by giving commercial customers IR capabilities for true day-night operability in their new Laser Battery Cap TWO (LBC2) to the 512/552 Holographic Weapon Sight. The LBC2 emits a low power red visible and an IR laser, which is useful across a variety of tactical and home defense scenarios. The battery packs run off of buy-anywhere lithium AA batteries and are waterproof in up to ten feet of water for one hour. MSRP: $429.00.

• Length/Width/Height: 2.7″ x 3.2″ x .96″ (68.5 x 81.2 x 24.3 mm)
• Weight: 4.9oz (140 g)
• Waterproof: Submersible to 33 ft. (10 m) depth
• Mount: All 512 and 552 EOTech HWS

• Visible Aiming Laser:
• Output Power: < 5mW
• Wavelength: 635 nm (Nominal)
• Class IIIR
• Fully adjustable windage and elevation

• IR Aiming Laser:
• Output Power: < 0.7 mW
• Wavelength: 835 nm (Nominal)
• Class I
• Fully adjustable windage and elevation

For more information, visit www.eotechinc.com



EOTech 512.LBC: Customers looking for a high-quality holographic weapon sight with an integral laser can now consider EOTech. The Michigan-based optics company has added a Laser Battery Cap (LBC) to the 512 Holographic Weapon Sight. The LBC emits a low power red visible laser which is useful across a variety of tactical and home defense scenarios. The battery packs run off of buy-anywhere lithium AA batteries and are waterproof in up to ten feet of water for one hour. MSRP: $729.00.

• Night Vision Compatibility: None
• Length/Width/Height: 5.4” x 2” x 2.25” (137 x 50.8 x 57 mm)
• Weight: 10.9 oz (310 g)
• Waterproof: Submersible to 10 ft. (3 m) depth
• Mount: 1” Weaver or MIL-STD-1913 rail
• Return to Zero: Repeatable to within 1 MOA after re-mounting
• Power Source: Two 1.5 V AA batteries, Supports lithium, alkaline, or rechargeable
• Lithium Battery Life: 1,100 continuous hours at nominal setting 12
• Alkaline Battery Life: 600 continuous hours

For more information, visit www.eotechinc.com



EOTech 552.LBC: Customers looking for a high-quality holographic weapon sight with an integral laser can now consider EOTech. The Michigan-based optics company has added a Laser Battery Cap (LBC) to the 552 NV Holographic Weapon Sight. The LBC emits a low power red visible laser which is useful across a variety of tactical and home defense scenarios. The battery packs run off of buy-anywhere lithium AA batteries and are waterproof in up to ten feet of water for one hour. MSRP: $979.00.

• Length/Width/Height: 5.4” x 2” x 2.25” (137 x 50.8 x 57 mm)
• Weight: 10.9 oz (310 g)
• Waterproof: Submersible to 33 ft. (10 m) depth
• Mount: 1” Weaver or MIL-STD-1913 rail
• Return to Zero: Repeatable to within 1 MOA after re-mounting
• Brightness: 20 daylight settings, 10 additional settings for Gen I through III+ night vision devices
• Power Source: Two 1.5 V AA batteries, Supports lithium, alkaline, or rechargeable
• Lithium Battery Life: 1,000 continuous hours at nominal setting 12
• AA alkaline Battery Life: 600 continuous hours

For more information, visit www.eotechinc.com



Trijicon Cerakote Finish: Trijicon has joined the Cerakote craze by offering its customers the ceramic based finish on select ACOG, Reflex and RMR models. The Cerakote finished optics will allow Trijicon owners to match their optic finish to their firearm, or simply own an optic with the more durable finish. Any Trijicon optic with Cerakote maintains the same optical performance and usability of non-Cerakote finished optics.

• Trijicon RMR
• Dual-Illuminated RMR
• LED RMR
• Adjustable LED RMR
• Unique Patented Housing Shape
• Versatile Sight
• Easy Adjustable Windage / Elevation
• True-Color Multi-Coated Lenses
• Parallax-Free
• Waterproof to 20 Meters (66 ft.)

• Trijicon Reflex
• Battery-Free Illumination
• Durable Aluminum-Alloy Housing
• True-Color Multi-Coated Lenses
• Versatile Sight
• Shock-Resistant
• Parallax-Free

• Trijicon ACOG
• Bullet Drop Compensating & Ranging Reticles
• Illuminated Reticle
• Fixed Magnification
• Both Eyes Open Design
• Superior Quality Glass Lenses
• Waterproof to 100 Meters (328 ft.)
• Rugged Aluminum-Alloy Housing
• Combat Proven
• Powered by a Single AA Battery with Adjustable Brightness Controls
• Includes The 4×32 LED Battery ACOG

For more information, visit www.trijicon.com



Nightforce 4-14 x 56 SHV: If you ever wanted a Nightforce riflescope but thought they were just out of your financial reach, it might be time to whip out your wallet. The engineers at Nightforce now have a honest-to-goodness Nightforce riflescope that’s MSRP is just south of $1000. The 4-14x56mm second focal plane riflescope offers ¼” MOA adjustments and a 30mm tube and its MOAR (center illumination), IHR reticle.

• Focal Plane: Second
• Magnification: 4-14x
• Objective Diameter: 56mm
• Exit Pupil Diameter: 4x: 12.0mm, 14x: 3.6mm
• Field Of View: 4x: 24.9ft (7.3m), 14x: 7.3ft (2.23m), @100 Yards/100 Meters
• Eye Relief: 3.14in-3.54in (80-90mm)
• Internal Adjustment Range: 100MOA elev. 70MOA wind., 27.3Mil elev. 19.1Mil wind.
• Click Value: .250MOA
• Tube Diameter: 30mm (1.18in)
• Ocular Diameter: 43mm
• Mounting Length: 5.79in/147mm
• Weight: 28.5oz/808grams (illuminated), 26.9oz/763grams (non-illuminated)
• Overall Length: 14.8in/376mm
• Reticles: MOAR (center illumination), IHR
• Illumination: Optional
• ZeroStop Nightforce: No

For more information, visit www.nightforceoptics.com



Night Optics Explorer 320 Thermal Camera: Night Optics has introduced a single hand-sized thermal camera called the Explorer 320. The pint-sized thermal imager offers a high definition display, USB charging, a familiar 50/60 Hz real time refresh rate, and is water and shock resistant. The very portable, high performing heat sensing optic allows a variety of customers with the need to visualize thermal signatures a product now.

• Type & Material: Uncooled ASI FPA
• Resolution: 384×288
• Spectral Range: 8-14 µm
• Pitch: 25 µm
• Lens System: 19mm Fixed focus
• Polarity: Black Hot / White Hot / Red hot
• Refresh Rate: 50hz Pal | 60hz NTSC
• Magnification: 1x Standard / 2x & 4x Digital
• Diopter: +/- 5
• Video Output Format: PAL or NTSC – 320×240
• Display: 640×480 | OLED | Brightness Control
• Interface Options: USB / Video Out
• Power & Runtime: Internal Rechargeable Li-ion Battery | 8hrs
• Additional Features: LED light or Laser (Optional)
• Detection Range (Human): 415 yds
• Operating Temperature: -4°F – 122°F | -20°C x 50°C
• Dimensions (mm | in): 66 x 62 x 158 | 2.6 x 2.4 x 6.2
• Weight: 10.7oz | 305g
• Environmental: IP67 – Water resistant | Shockproof to 1m
• Warranty (US | Int.): 2 Years | 1 Year

For more information, visit www.nightoptics.com



Redfield Accelerator Reflex Sight: Redfield has entered the reflex sight market with their cost-effective Accelerator Reflex Sight. The sight works in any reflex-sight situation for handguns, rifles and shotguns alike. It allows shooters who want a quality optic to have a multi-use sight without breaking the bank. The Accelerator is durable, well designed and adjustable to 80 MOA and is compatible with Picatinny or Weaver-style rails or mounts.

• 80 minutes of angle (MOA) for windage and elevation adjustment
• 6-MOA dot
• Eye Relief: Unlimited
• Weight: 1 ounce
• Height: 0.98 inches
• Length: 1.92 inches
• Width: 1.15 inches

For more information, visit www.redfield.com



Redfield Revolution/TAC 3-9x40mm Riflescope: Redfield’s Revenge line of riflescopes has gone tactical with Redfield introducing a TAC series riflescope complete with their Rapid Target Acquisition lockable eyepiece and a TAC-MOA reticle built with stadia lines on the horizontal and vertical crosshairs set at two minute of angle (MOA) increments to allow shooters a quick and consistent way to range targets. The riflescope is adjustable in 1/4 MOA increments. MSRP: $349.

• Reticle: 4-Plex, Accu-Range
• Item Number & Finish: #67090 (Matte), #67095 (Matte)
• Lens Coating: Vapor Deposited, Multi-coated, Illuminator Lens System
• Maintube Diameter: 1″
• Environmental Protection: Nitrogen Filled
• Actual Magnification: 3.3-8.5
• Linear Field of View (ft@100yd): 32.9-13.1
• Linear Field of View (m@100m): 11.0-4.4
• Exit Pupil (mm): 12.1-4.7
• Weight (ounces): 12.6
• Weight (grams): 357.0
• Length (in): 12.3
• Length (cm): 32.0
• Mounting Space (in): 5.6
• Mounting Space (cm): 14.2
• Objective Aperture (mm): 40.0
• Eye Relief (in): 3.7-4.2
• Eye Relief (mm): 106.7-94.0
• Elevation Adjustment Range (MOA): 56
• Windage Adjustment Range (MOA): 56

For more information, visit www.redfield.com



Redfield Battlezone 6-18x44mm Riflescope: Redfield adds some magnification horsepower to its popular line of AR-style riflescopes with the 6-18×44 Battlezone riflescope. The Battlezone 6-18x44mm rifle has a Bullet Drop Compensation System (BDC) and useful TAC-MOA reticle. Redfield made being accurate just a little bit easier for Battlezone users who fire .223/5.56 NATO and .308/7.62 NATO calibers because their BDC system comes with two dials, one is calibrated for the .223/5.56mm NATO 55gr bullets at 3,100 fps, and the other is calibrated for 168gr .308/7.62mm NATO bullets at 2,650 fps.

• Reticle: Tac-MOA
• Item Number & Finish: #118929 (Matte)
• Lens Coating: Fully Multi-Coated Lens System
• Adjustment Markings: Pop-up Resettable 1/4 MOA Finger Click Adjustments
• Maintube Diameter: 1″
• Environmental Protection: Nitrogen Filled
• Actual Magnification: 5.8-17.4
• Linear Field of View (ft@100yd): 19.2-6.0
• Linear Field of View (m@100m): 6.4-2.0
• Exit Pupil (mm): 7.6-2.5
• Weight (ounces): 29.8
• Weight (grams): 590
• Length (in): 14.5
• Length (mm): 368.0
• Mounting Space (in): 5.7
• Mounting Space (cm): 14.4
• Objective Aperture (mm): 44.0
• Eye Relief (in): 3.5
• Eye Relief (mm): 89
• Elevation Adjustment Range (MOA): 36
• Windage Adjustment Range (MOA): 36

For more information, visit www.redfield.com



Redfield Limited Edition USMC M40 Riflescope: During Vietnam Marine sniper rifles used Redfield optics. Now, Redfield is offering a limited production run of 1,000 U.S. Marine Corps M40 edition riflescopes through SWFA Outdoors. The riflescopes are OD green, 3-9x40mm riflescopes with Mil Dot reticle, a tactile post on the power selector, and meant to resemble the original USMC M40 riflescopes used in the Vietnam War.

• Stock # – M408541
• 1″ Tube
• Anodized Green Finish
• Mil Dot Reticle
• Individually Serial Numbered (XXXX of 1000)

For more information, visit www.swfa.com



Redfield Battlefield 10x42mm Roof Prism Binoculars: Tactical shooters like optics built for their high precision needs and binoculars are no exception. Redfield introduced its Battlefield 10x42mm tactical binoculars as a way to give these shooters just the kind of glass they’re looking for. Just like their Battlezone riflescope brothers, the Battlezone Binoculars feature a TAC-MOA reticle, which means it has stadia lines on the vertical and horizontal crosshairs, set in two minute of angle increments to aid in ranging. The Battlefield comes in a Desert Digital finish, tripod adaptable mount, a MOLLE case, neoprene neck strap and lens covers.

• 10x magnification
• 42mm objective lenses
• Compact BAK4 roof prism design
• 65° wide angle apparent field of view
• Fully multicoated optics
• 16.3mm eye relief
• 4.3′ minimum focus distance
• TAC-MOA reticle: Horizontal and vertical lines with 2 MOA increments, on left ocular, with rotational adjustment
• Knurled center focus knob is accessible with either hand
• Twist-up eyecups for customized eye relief with or without eye-wear
• Right-eye diopter adjustment
• Tripod mountable with an optional adapter
• Nitrogen purged and o-ring sealed for waterproof, fogproof, and rustproof performance
• Rubber armor provides a secure non-slip grip and protection against drops and knocks

For more information, visit www.redfield.com



Leupold Mark 6 3-18×44 M5B2: There’s less to talk about when it comes to Leupold’s 2014 Mark 6 3-18x44mm M5B2 tactical riflescope, and tactical shooters should be pleased. The Oregon-based company managed to shave 20 percent of the riflescopes weight and 20 percent of the riflescopes size while still maintaining its legendary world-class optical quality and precision repeatability. MSRP ranges between $2749.99 to $5624.99 depending on which options you want on your pint-sized tactical targeting tube.

• Actual Magnification: 3.00 x (low), 18.00 x (high)
• Linear Field of View (ft/100 yd): 36.80 ft (low), 6.30 ft (high)
• Linear Field of View (m/100 m): 12.30 m (low), 2.10 m (high)
• Eye Relief (in): 3.80 in (low), 3.90 in (high)
• Eye Relief (mm): 96.00 mm (low), 98.00 mm (high)
• Weight (oz): 23.60 oz
• Weight (g): 669.00 g
• Objective Clear Aperture (in): 1.70 in
• Objective Clear Aperture (mm): 44.00 mm
• Elevation Adjustment Range: 100.00 moa
• Windage Adjustment Range: 50.00 moa
• Length: 11.90 in
• Tube Length: 5.30 in
• Eyepiece Length: 3.20 in
• Objective Length: 2.70 in
• Objective Diameter: 2.10 in
• Eyepiece Diameter: 1.70 in
• Tube Diameter: 1.34 in

For more information, visit www.leupold.com



Leupold Mark 6 3-18×44 M5C2: There’s less to talk about when it comes to Leupold’s 2014 Mark 6 3-18x44mm M5C2 tactical riflescope, and tactical shooters should be pleased. The Oregon-based company managed to shave 20 percent of the riflescopes weight and 20 percent of the riflescopes size while still maintaining its legendary world-class optical quality and precision repeatability. The C2 version of this riflescope differs from the B2 version in that it offers Leupold’s Zerolock elevation dial which automatically locks at the zero position and gives 20 Mils of elevation in just two turns of the dial. MSRP ranges between $2999.99 to $5499.99 depending on which options you want on your pint-sized tactical targeting tube.

• Actual Magnification: 3.00 x (low), 18.00 x (high)
• Linear Field of View (ft/100 yd): 36.80 ft (low), 6.30 ft (high)
• Linear Field of View (m/100 m): 12.30 m (low), 2.10 m (high)
• Eye Relief (in): 3.80 in (low), 3.90 in (high)
• Eye Relief (mm): 96.00 mm (low), 98.00 mm (high)
• Weight (oz): 23.60 oz
• Weight (g): 669.00 g
• Objective Clear Aperture (in): 1.70 in
• Objective Clear Aperture (mm): 44.00 mm
• Elevation Adjustment Range: 100.00 moa
• Windage Adjustment Range: 50.00 moa

For more information, visit www.leupold.com



Exelis Night Enforcer Fusion: Exelis saw the need for a fused optic and created the Night Enforcer Fusion for the U.S. Army. Once their contractual obligations were met with the U.S. Army, Exelis saw the need for domestic non-military use so they directed the Night Enforcer Fusion which combines the qualities of light-intensified optical technology and infrared micro-bolometer technology into one compact monocular to give its users twice the visuals in situations where conventional human eye operability needs some technology-enhanced capabilities. It uses three “AA” batteries with a Generation 3 image intensifier.

• Hand-held or head-mounted (adjustable head mount included)
• Lightweight, compact
• Low-battery indicator
• Mounts to weapons, helmets, cameras, and camcorders
• Eyecup for covert use
• Built-in IR illuminator
• Uses one AA battery
• Weather-resistant
• Variable gain control (NEPVS-14)
• High-light cut off
• Carrying case

For more information, visit www.exelisinc.com



C-MORE Systems RTS2: Virginia-based company C-MORE Systems introduced the RTS2 red dot sight with a 10 position, push button, manually operated intensity switch with previous intensity return and auto off. MSRP: $419. Contact 540-347-4683, email service@cmore.com.

• Small Compact Design
• 10 position manually operated push button intensity switch with previous intensity return and auto off
• Aluminum Body Construction
• Precision Click Adjustments With Lock
• C-MORE Style Rounded Glass Lens (wider field of view)
• Available in Black
• Removable Battery Tray
• Water Resistant to 1 meter
• Ultra Bright Red Dot available in 3 or 6 MOA
• Removable Picatinny / Weaver Rail Mount for Direct Mounting (RTS2R)

For more information, visit www.cmore.com



Di Optical USA EG1 Eagle Series Prism Gunsight: Manufactured in South Korea, Di Optical USA is bringing the EG1 Eagle Series parallax free prism gunsight to the U.S. market. Built to exceed MIL-STD 810G, the sight is at home on an AR platform with a 30mm lens, 2.5 MOA red dot, manual rotary switches and a true 1x magnification. The optical sight is also submersible up to 30 feet. MSRP: $350.

• MODEL: EG1
• OPTIC TYPE: Parallax free prism
• LENS DIMENSIONS: 30mm Diameter
• EYE RELIEF: Unlimited
• MAGNIFICATION: 1X
• 1 CLICK: 24 MM @ 100 M (DOT ONLY) / 1 MOA
• OVERALL DIMENSIONS: 48 mm x 53 mm x 62 mm
• WEIGHT: 310 g (11.3 Oz) w/Battery & optional QD Mount
• DOT SIZE: 2.5 MOA
• BRIGHTNESS SETTINGS: 11 ( 7 daylight, 4 night vision)
• STORAGE TEMP RANGE: -41° ~ 71° C, (-42° ~ 160° F)
• OPERATING TEMP RANGE: -32° ~ 71° C, (-25.6° ~ 160° F)
• MIL SPEC CONFORMITY: MIL-STD 810G Environment Testing
• NIGHT VISION COMPATIBLE: YES
• SWITCH: Manual Rotary Switch
• MOUNT: MIL-STD 1913 Rail Optional quick disconnect
• WATERPROOF: Submersible to 30 ft.
• ADJUSTMENT RANGE: 150 CLICKS

For more information, visit www.diopticalusa.com



Di Optical USA FC1 Falcon Series Prism Gunsight: Manufactured in South Korea, Di Optical USA is bringing the FC1 Falcon Series parallax free prism gunsight to the U.S. market. Built to exceed MIL-STD 810G, the sight is at home on an AR platform with a 17x23mm lens, 2.5 MOA red dot, manual rotary switches and a true 1x magnification. The optical sight is also submersible up to 30 feet. MSRP: $350.

• MODEL: FC-1
• OPTIC TYPE: Parallax free prism
• LENS DIMENSIONS: 17mm x 23mm
• EYE RELIEF: Unlimited
• MAGNIFICATION: 1X
• 1 CLICK: 24 MM @ 100 M (DOT ONLY) / 1 MOA
• OVERALL DIMENSIONS: 48 x 34 x 40 mm (L x W x H)
• WEIGHT: 119 g (4.2 Oz)
• DOT SIZE: 2.5 MOA
• BRIGHTNESS SETTINGS: 14 ( 7 daylight, 7 night vision)
• STORAGE TEMP RANGE: -41° ~ 71° C, (-42° ~ 160° F)
• OPERATING TEMP RANGE: -32° ~ 71° C, (-25.6° ~ 160° F)
• MIL SPEC CONFORMITY: MIL-STD 810G Environment Testing
• NIGHT VISION COMPATIBLE: YES
• SWITCH: Push Button
• MOUNT: MIL-STD 1913 Rail Optional quick disconnect
• WATERPROOF: Submersible to 30 ft.
• ADJUSTMENT RANGE: 150 CLICKS

For more information, visit www.diopticalusa.com



Di Optical USA Raven Series RV1 LED Red Dot: Manufactured in South Korea, Di Optical USA is bringing the Raven Series RV1 LED Red Dot to the U.S. market. Built to exceed MIL-STD 810G, the sight has a 32mm lens, 11 position LED brightness control rotary switch, is night vision compatible, has windage and elevation adjustments and runs off of a common CR123 battery. MSRP: $219.

• MODEL: RV1
• OPTIC TYPE: Collimator LED Red Dot
• LENS DIMENSIONS: 32mm Objective Lens/25mm Ocular Lens
• EYE RELIEF: Unlimited
• MAGNIFICATION: 1X
• OVERALL DIMENSIONS: 134 x 75 x 75 mm (L x W x H)
• WEIGHT: 350 g / 12.3 oz Including Battery (w/ Screw-In Mount)
• DOT SIZE: 3 MOA
• BRIGHTNESS SETTINGS: 11 ( 8 daylight, 3 night vision)
• ORAGE TEMP RANGE: -41° ~ 71° C, (-42° ~ 160° F)
• OPERATING TEMP RANGE: -32° ~ 71° C, (-25.6° ~ 160° F)
• MIL SPEC CONFORMITY: MIL-STD 810G Durability Testing
• MOUNT: MIL-STD 1913 Rail
• SWITCH: Manual Rotary Switch
• ADJUSTMENT RANGE: 150 CLICKS
• ADJUSTMENT PER CLICK: 0.5 MOA
• WATERPROOF: IP65 Splash resistant

For more information, visit www.diopticalusa.com



Di Optical USA Raven Series RV2 LED Red Dot: Manufactured in South Korea, Di Optical USA is bringing the Raven Series RV2 LED Red Dot to the U.S. market as a smaller, more rugged option to the RV1 Series. Built to exceed MIL-STD 810G, the sight has a 32mm lens, 14 position LED brightness control rotary switch, is night vision compatible, has windage and elevation adjustments, is submersible to 30 feet, and runs off of a common CR123 battery. MSRP: $275.

• MODEL: RV2
• OPTIC TYPE: Collimator LED Red Dot
• LENS DIMENSIONS: 32mm Objective Lens/25mm Ocular Lens
• EYE RELIEF: Unlimited
• MAGNIFICATION: 1X
• OVERALL DIMENSIONS: 103 x 50 x 75 mm (L x W x H)
• WEIGHT: 241 g / 8.5 oz (w/o QD Mount)
• DOT SIZE: 3 MOA
• BRIGHTNESS SETTINGS: 14 (7 daylight, 7 night vision)
• ORAGE TEMP RANGE: -41° ~ 71° C, (-42° ~ 160° F)
• OPERATING TEMP RANGE: -32° ~ 71° C, (-25.6° ~ 160° F)
• MIL SPEC CONFORMITY: MIL-STD 810G Durability Testing
• MOUNT: MIL-STD 1913 Rail or optional quick disconnect mount
• SWITCH: Push button
• ADJUSTMENT RANGE: 150 CLICKS
• NIGHT VISION COMPATIBLE: YES
• WATERPROOF: Submersible to 30 ft.

For more information, visit www.diopticalusa.com



C-MORE Systems X10 Series Riflescope: Virginia based company known for its red dot sights enters the realm of riflescopes with three ten-power optics built with mil-dot reticles. The riflescopes are available in 1-10x24mm, 2-20x44mm, 3-30x56mm. Contact 540-347-4683, email service@cmore.com.

For more information, visit www.cmore.com



To learn more about these 24 new optics for 2014, please click on the links below:

• Sightron S-TAC Series S-TAC 1-7×24 IRMH
• Sightron S-TAC Series S-TAC 2.5-17×56 IRMH
• Trijicon VCOG 1-6x24mm Riflescope
• EOTech LBC
• EOTech 512/552 LBC2
• EOTech 512.LBC
• EOTech 552.LBC
• Trijicon Cerakote Finish
• Nightforce 4-14 x 56 SHV
• Night Optics Explorer 320 Thermal Camera
• Redfield Accelerator Reflex Sight
• Redfield Revolution/TAC 3-9x40mm Riflescope
• Redfield Battlezone 6-18x44mm Riflescope
• Redfield Limited Edition USMC M40 Riflescope
• Redfield Battlefield 10x42mm Roof Prism Binocular
• Leupold Mark 6 3-18×44 M5B2
• Leupold Mark 6 3-18×44 M5C2
• Exelis Night Enforcer Fusion
• C-MORE Systems RTS2
• Di Optical USA EG1 Eagle Series Prism Gunsight
• Di Optical USA FC1 Falcon Series Prism Gunsight
• Di Optical USA Raven Series RV1 LED Red Dot
• Di Optical USA Raven Series RV2 LED Red Dot
• C-MORE Systems X10 Series Riflescope
