New Cold-Spray System to Repair Military Equipment

The following is a release from Ms. Joyce M. Conant of ARL Public Affairs:

The U.S. Army Research Laboratory, or ARL, has developed a novel, hybrid cold-spray system, in collaboration with the South Dakota School of Mines, or SDSM, which is being transitioned throughout the Department of Defense and is anticipated to save millions of dollars in sustainment costs.

Advertisement - Continue Reading Below

Cold spray is being used to repair expensive and hard-to-acquire components on military aircraft, vehicles and even submarines, which would otherwise be scrapped. Some of these parts cost hundreds of thousands of dollars each and/or are difficult to procure because of long lead times or obsolescence.

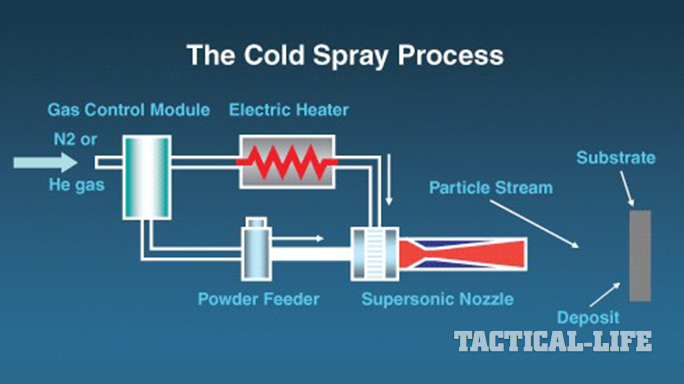

The cold-spray process utilizes powders, which are accelerated at supersonic velocities, onto the surface of a part that has been worn or damaged and upon impact the powder is consolidated into an adherent and dense solid material restoring the part back to its original dimensions.

A joint ownership agreement has been established by ARL and SDSM, which has resulted in the commercialization of the system called the “VRC Gen III.”

Advertisement - Continue Reading Below

“The VRC Gen III represents the world’s most versatile, high-temperature and pressure cold-spray system that meets the requirements of the DOD and its contractors,” said Victor Champagne from ARL’s Weapons and Materials Research Directorate. “It only takes up a small three-foot by five-foot area and is on wheels for easy mobility for use in production, repair facilities or in the field. It can be operated by hand or by a robot, which is another unique feature that makes it the system of choice for the military.”

“Cold spray … is real combat capability right here. And, it really matters to what we’re doing overseas,” said Col. Kevin Kennedy, commander of the 28th Bomb Wing on Ellsworth Air Force Base in South Dakota.

Cold-spray repair/preventative maintenance processes, on hydraulic tubing and skin panels, were developed for the B-1 aircraft as part of the Air Force-funded aircraft repair feasibility study and have been in operational flight for over six years, Champagne said.

Advertisement - Continue Reading Below

“Chafed hydraulic lines are the number one maintenance man-hour driver and number one non-mission capability rate driver on the B-1 accumulating over 5,000 maintenance man-hours per year,” Champagne said. “Cold-spray coatings were deposited on hydraulic lines to test the viability of providing a sacrificial wear surface to reduce the incidence of chafed hydraulic lines. The coating was developed and tested by ARL.”

Champagne explained that the first operational test was on a chafed-nose landing gear accumulator hydraulic line installed in March 2009 (six years, ~3,000 flight hours). In January 2011, additional cold spray coated hydro tubes were installed on the wing spoiler actuator and two sets of main landing gear lines (four years, > 4000 combined flight hours).

He went on to say that in June 2012, a forward equipment bay panel was repaired using cold spray.

“These components were chosen because they represented some of the most demanding applications with the highest projected benefits in aircraft availability and/or cost savings. The cost savings associated with the FEB panel repair alone exceeded $220,000,” Champagne said. “If implemented across the fleet, savings would likely be two orders of magnitude higher. All of these components are still flying today, are inspected periodically, and are performing as intended with no adverse effects.”

Champagne said the success of these tests and the need to improve aircraft availability for the warfighter has inspired Air Combat Command leadership to support the implementation of cold spray at Ellsworth Air Force Base, South Dakota, and Dyess Air Force Base, Texas.
