C&H Precision Weapons EDC Line Includes EDC-XL For Large-Frame Pistols

The EDC optic from C&H Precision Weapons offered a robust, shockproof construction capable of withstanding +P+ ammunition (below). However, the smaller footprint was designed specifically with compact pistols in mind. For this reason, the company offers the EDC-XL with the same hard-use performance in a larger package for full-size pistols.

The EDC-XL From C&H Optics Provides a Large-Frame Option

Like the original EDC, the EDC-XL features a rugged CNC-machined, one-piece aircraft aluminum body. As a result, the optic delivers 100% shockproof operation capable of withstanding the recoil of +P and +P+ ammunition. Likewise, a waterproof rating of IPX7 allows the unit to be submerged in 1 meter of water for 30 minutes and still operate.

Where the original EDC was designed for compact concealed carry, the EDC-XL is designed for larger pistols. Measuring 1.78in x 1.18in x 1.08in, the optic would make itself at home on competition and other full-size firearms. Likewise, it would make a solid option for optic-compatible shotguns or as a backup sight on an AR. In addition, its light weight of .8 ounces will not adversely affect your pistol’s slide cycling.

The EDC-XL is available in either 3 MOA dot or multi-reticle versions—with 3 MOA dot and 34 MOA circle. Correspondingly, the reticle is offered in either red or green with ten brightness levels (eight daylight and two night vision). Windage and elevation are adjustable with a 35 MOA range each and a click value of 1 MOA per click.

Operating on a single CR 1632 3V lithium battery, the EDC-XL delivers 50,000 hours of runtime. Likewise, C&H’s Smart Power Management system shuts down after five minutes of inactivity to preserve battery life. Correspondingly, a motion-controlled shake-to-wake feature wakes the optic when it senses motion, so it is ready when you are.

It is important to note that the original EDC features GLx or RMSc mounting options. However, the larger EDC-XL utilizes the RMR footprint.

Availability

The C&H Precision Weapons EDC-XL is available now with MSRPs of $274.95 (3 MOA dot) or $299.95 (multi-reticle). For more info, please visit CHPWS.com.

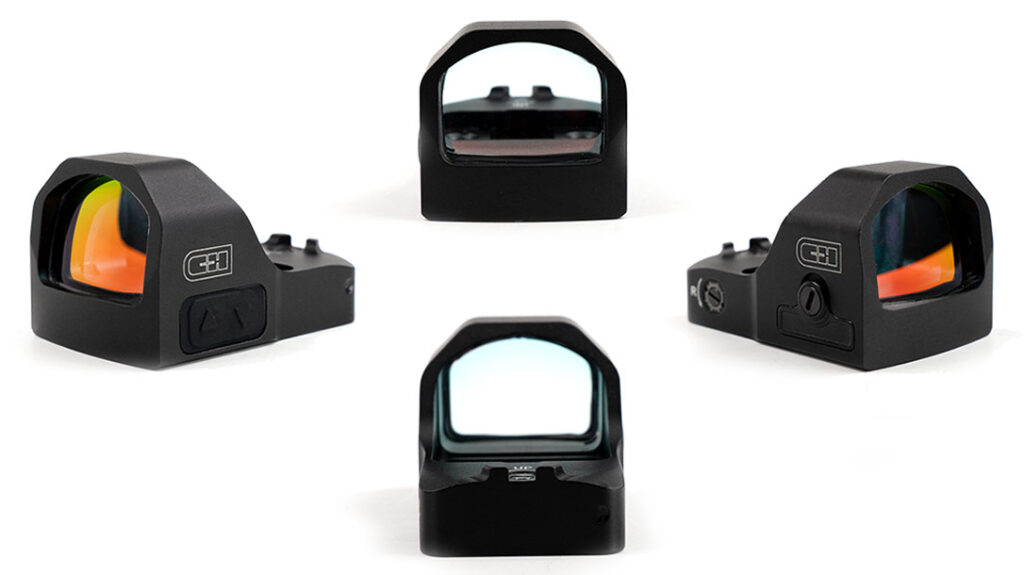

The EDC-XL From C&H Optics Provides a Large-Frame Option.
(Photo by C&H Precision Weapons)
On April 21, 2023, Personal Defense World reported:

One of the fastest growing manufacturers in the southwest, C&H Precision Weapons releases its EDC concealed carry optic. Offering a long battery life, and rugged construction, the optic is ready for hard daily use. Likewise, it is available in your choice of red or green reticle, including multi-reticle options. The EDC is one of the company’s first in-house optics and lives up to the motto, “No quarter given.” It is available for pre-order now and begins shipping in May.

The C&H Precision Weapons EDC

Featuring a CNC-machined, one-piece aluminum aircraft body, the EDC features 100% shockproof construction, according to the company. As a result, the unit can withstand a 1,500gs force 1,000 times. For this reason, the optic is capable of easily tolerating the recoil from +P and +P+ ammunition.

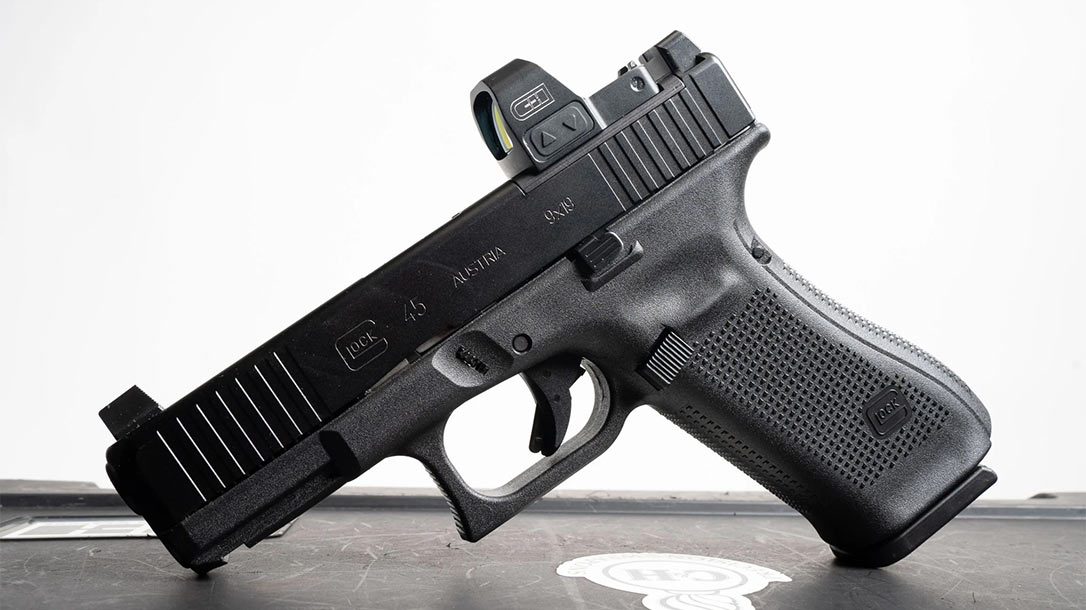

The C&H Precision Weapons EDC.
Photo by C&H Precision Weapons

Likewise, a waterproof rating of IPX7 enables the optic to withstand submersion in 1 meter of water for 30 minutes. Meaning that it can withstand hard use in inclement conditions for an extended period of time.

With a length of 1.6 inches, width of .98 inches, and height of .94 inches, the EDC is designed specifically for concealed carry. However, the .62-inch lens diameter offers ample room for a good sight picture in the small platform. Likewise, its light weight of .6 ounces will not add undo weight to your firearm. The EDC is available with GLx or RMSc mounting options.

Available in red or green reticle, the EDC features a 3 MOA dot. However, a multi-reticle version with a 3 MOA dot and 34 MOA circle is also available. Windage and elevation are adjustable with a 35 MOA range each and a click value of 1 MOA per click.

The optic boasts a battery life of 50,000 hours on a single CR 1632 3V lithium battery. Correspondingly, a Smart Power Management system helps preserve battery life by shutting down after five minutes of inactivity. To ensure that the optic is ready to go when you are, a motion-controlled shake-to-wake feature wakes the optic up when it detects motion. The EDC includes ten brightness level settings, with levels 1 and 2 being night vision compatible.

Editor’s Note:

The larger brother to the EDC, the EDC-XL, will also be released soon and is suited for larger framed pistols. Featuring many of the same features as the EDC, the EDC-XL takes things to a slightly higher level. Keep following this story, and we will update it as soon as the EDC-XL is available.

Availability

The C&H Precision Weapons EDC is available now with MSRPs of $249.95 (3 MOA dot) or $274.95 (multi-reticle). For more info, please visit CHPWS.com.

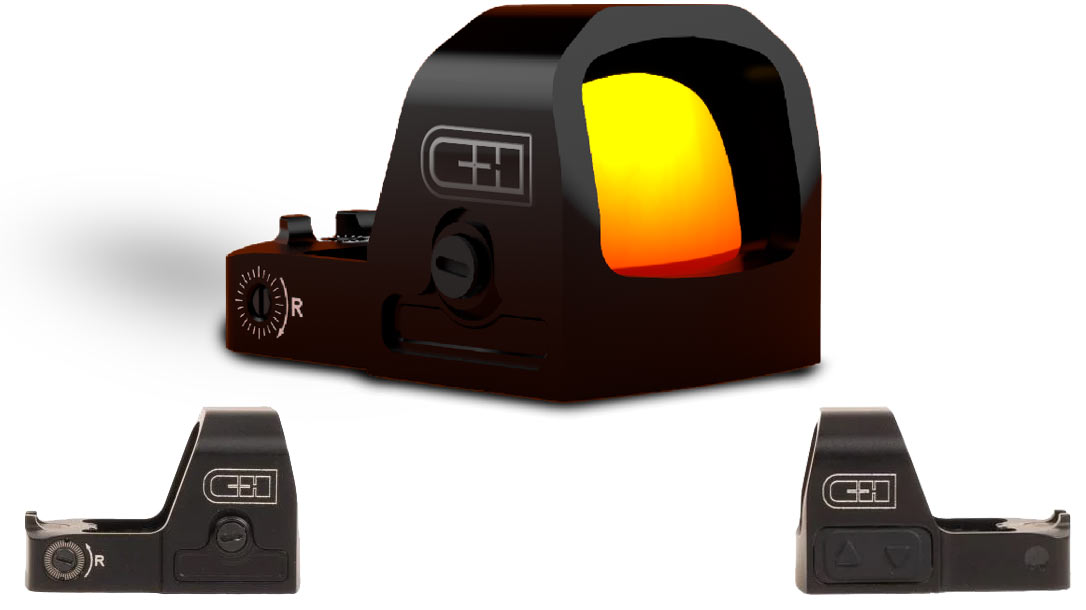

The C&H Precision Weapons EDC.

C&H Precision Weapons EDC-XL Specs

Magnification1x
Lens Diameter22mm
Elevation/Windage adjustment range45 MOA (Total 90 MOA)
Click Value1 MOA per click
Dot Size3 MOA DOT (34 MOA circle also in multi-reticle version)
Dot ColorRed
Parallax Free33 Yards
Red Dot Brightness Setting10 levels
Power Supply1x CR 1632 3V Lithium battery
Auto Wake/Sleep225 seconds after no movement
Dimensions (LxWxH)(LxWxH) 1.78in x 1.18in x 1.08in
Weight (with battery installed)0.8oz (approx.)
Shockproof & WaterproofRated for +P and +P+ Ammo, IPX7
FootprintRMR
MSRP$274.95 – $299.95

C&H Precision Weapons EDC Specs

Magnification1x
Lens Diameter.62 inch (16mm)
Elevation/Windage adjustment range35 MOA (Total 70 MOA)
Click Value1 MOA per click
Dot Size3 MOA (34 MOA circle also in multi-reticle version)
Dot ColorRed or green versions are available
Parallax Free33 Yards
Red Dot Brightness Setting10 levels
Power Supply1x CR 1632 3V Lithium battery
Auto Wake/Sleep5 Mins after no movement
Dimensions (LxWxH)1.6”x .98”x.94” (41mm x 25mm x 24mm)
Weight (with battery installed).6 ounces (17g) (approx.)
Shockproof & WaterproofRated for +P and +P+ Ammo, IPX7
FootprintGLx or RMSc
MSRP$249.95 – $274.95

Features

  • 10 Levels of brightness (levels 1 and 2 are night vision compatible)
  • Motion control (Shake to wake up)
  • Smart Power Management (auto-Off after 5 mins of inactivity)
  • 50,000 Hours of Battery Life
  • CNC machined one-piece body(aircraft aluminum)
  • 100% Shockproof(Rated for +P and +P+ Ammo)
  • Waterproof(ipx7, 1 meter for 30 mins)
